DA62X Improvement Mod

Plane go brum brum lmao ...

Informations du fichier
À propos de
Link to the active discussion on FS forums
FS20 file system is very fragile. Mods can interfere with eachother very easily. Please double, tripple check your community folder before posting. 99% of problems have been fixed simply by removing some other old mod. Also please delete the whole DA62X folder before updating.
Before posting, please read the incluced PDF, check the FAQ and Changelog!!



This mod aims to improve the default DA62 in as many aspects as possible.Also included is a PDF with a quick rundown of the added systems (G1000, FADEC and Anti-Ice) Further information can be found in the AFM

Key Features

Powerplant changes

FADEC

The FADEC controls manifold pressure, injected fuel quantity and propeller speed according to the desired engine power preselected with the power lever. The RPM will follow the RPM set curve. (Further details in the included PDF)

  • Accurate engine performance in relation to pressure altitude and temperature
  • Accurate fuel flows
  • More accurate Oil/Coolant temperature and pressure behaviour
  • More realistic startup behaviour
  • Fixed Fuel Pumps (no fuel flow increase)
  • Progressive Engine damage (disabled by default)
  • Added oil and fuel starvation when flying inverted.

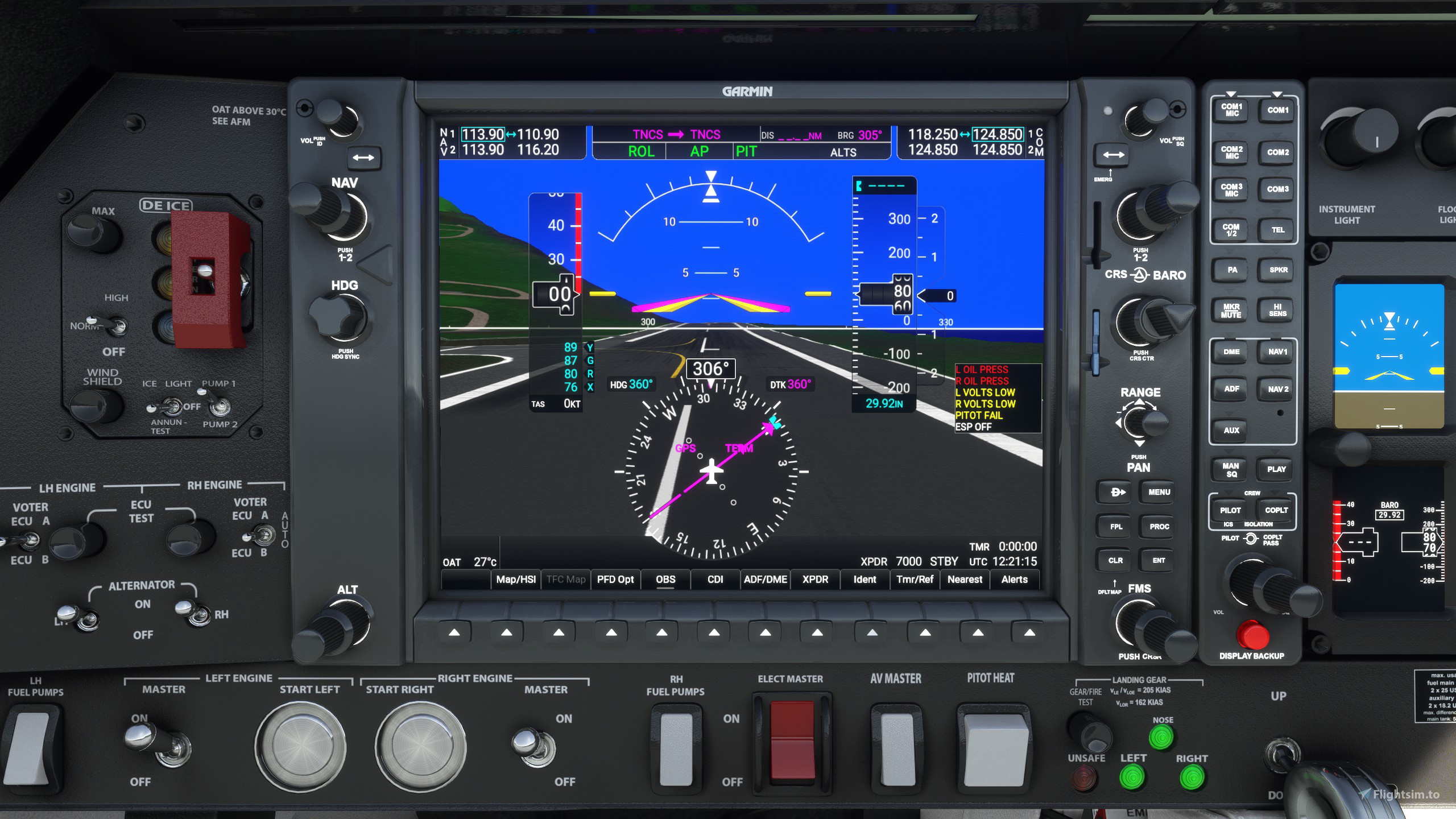

Compatible with WT G1000 Nxi

  • Fixed Load, RPM indications
  • Added systems and fuel page with funtional fuel totaliser (G1000 mod)
  • Correct Engine and Ammeter indication behaviour
  • Added Aux tank fuel indication
  • CAS messages added for Engine, Anti ice, Gear, Failures and other systems.

Flightmodel

  • More accurate Cruise speeds and climb rates
  • Smoother less twitchy control compared to default
  • Improved Cl table and stall characteristics
  • Increased adverse yaw
  • Increased flap lift and drag
  • Increased gear drag
  • Tighter turn radius on the ground and differential braking
  • More accurate sitting attitude and suspension (rear wheels clip slightly)

Systems

  • Custom Anti-Ice system with modes, endurance and weight (Check PDF for more info)
  • Redone electrical system
  • Functional Ice-Light
  • Functional windshield defrost (always on)
  • ECU Tests, functional ECU voters and feathering
  • Simulated fuel/gearbox temperature
  • Lower standby instrument brightness for night flying (linked to G1000)
  • Standalone standby instruments
  • Improved autopilot PIDs with correct lateral and vertical limitation

Statsaving

  • Everythring from fuel levels, flaps lights, switches, frequencies are saved between flights. This can be enabled if desired (PDF)

Visuals

  • Brighter taxi and landing lights (Uwa's lighting mod is already integrated and must be removed!)
  • Improved Internal cockpit lighting and ambience
  • Brighter Nav lights and LED strobes
  • Added white Navlight
  • Added metal leading edge and MT logo to static prop

Other

  • Fuel totaliser can be reset by pressing the oxygen guage
  • Added Debugging CAS messages to help figuring out mod compatibility (FAQ)




Thanks for the help <3:
Nishmaster, Tim, Birdy,Uwajimaya, Jonasbeaver, BilingualHarp7, FrettFS and others

da62 best mod the world
Details
Compatibilité
Sim Update 10
Sortie initiale
November 02, 2020
Dernière mise à jour
11 day(s) ago — V0.9

Version

V0.9

Taille du fichier

243.76 MB

Downloads

121,424

Do you enjoy this submission?
Your donation to support the creator is appreciated!
Ce fichier a été analysé par un antivirus et peut être téléchargé en toute sécurité.

Informations du fichier

Subscribers
1.6K
Classement
4.75/5.0 — Superbe !
Status
Pas encore téléchargé
Today's Downloads
99
Affiliation
Diamond DA62
Video Preview
Watch

Superbe !
Basé sur 150 notations
😢
7
triste
😠
6
en colère
😮
7
choqué
🙏
153
reconnaissant
😂
16
amusé
😍
176
en amour



Timeline

  • Updated to version V0.9

  • Updated to version V0.8

  • Updated to version V0.7

  • Updated to version v0.6.2

  • Updated to version v0.6.1

  • Updated to version v0.6

  • Initial File Release


Permissions

Permission de téléversement.
Vous n'êtes pas autorisé à publier ce fichier sur un autre site sous aucun prétexte.

Permission de modification
Vous n'êtes pas autorisé de modifier ou améliorer mon fichier sans ma permission ou crédit.

Permission de conversion.
Vous êtes autorisé à convertir mon fichier, mais vous devez me créditer correctement et ajouter un lien vers mon fichier.

Permission d'utilisations de contenu
Vous êtes autorisé à utiliser des éléments de mon fichier sans autorisation ni crédit.

© mrtommymxr - All rights reserved. Tout rechargement ou redistribution de ce fichier sans autorisation de l'auteur de ce fichier est interdit. Ce mod de Flight Simulator 2020 a été créé par mrtommymxr and shared in Aircraft » Aircraft Enhancements pour Microsoft Flight Simulator.


847 Commentaires

For those experiencing CTDs after SuX, please follow the instructions,

https://forums.flightsimulator.com/t/da62x-improvement-mod-v0-8-jul-08/294584/2514

**SOLVED***NAV1/NAV2 is broken in G1000NXi since SU10

The Problem was: State saving and engine damage

I modified the DA62_INTERIOR.xml as mentioned in the PDF

--> this i causing my mentioned problem

Am I the only one with a broken Navigation?

The NAV1/NAV2 in G1000NXi says "0.00" --> I can't set any frequency

it only works when I remove the DA62X -Mod

https://forums.flightsimulator.com/t/da62x-improvement-mod-v0-9-sep-24-sux/294584/2523?u=xethless

I encountered a weird issue trying to take off from a 12000ft airport. Upon starting the engines, idle throttle gave me about 25% torque and RPM was above 1200, the plane immediately started rolling and it was hard to taxi without slamming the brakes. Something is off on high altitude, I expected the exact oposite, low torque and difficulty on taking off.

Hi is it possible to bind a key for the ECU with spadnext or in the sim,

had a look in binding.txt but nothing showing up in sim or spad with them bindings regards alan

Hi mrtommymxr,

thank you for this excellent DA62 improvement!

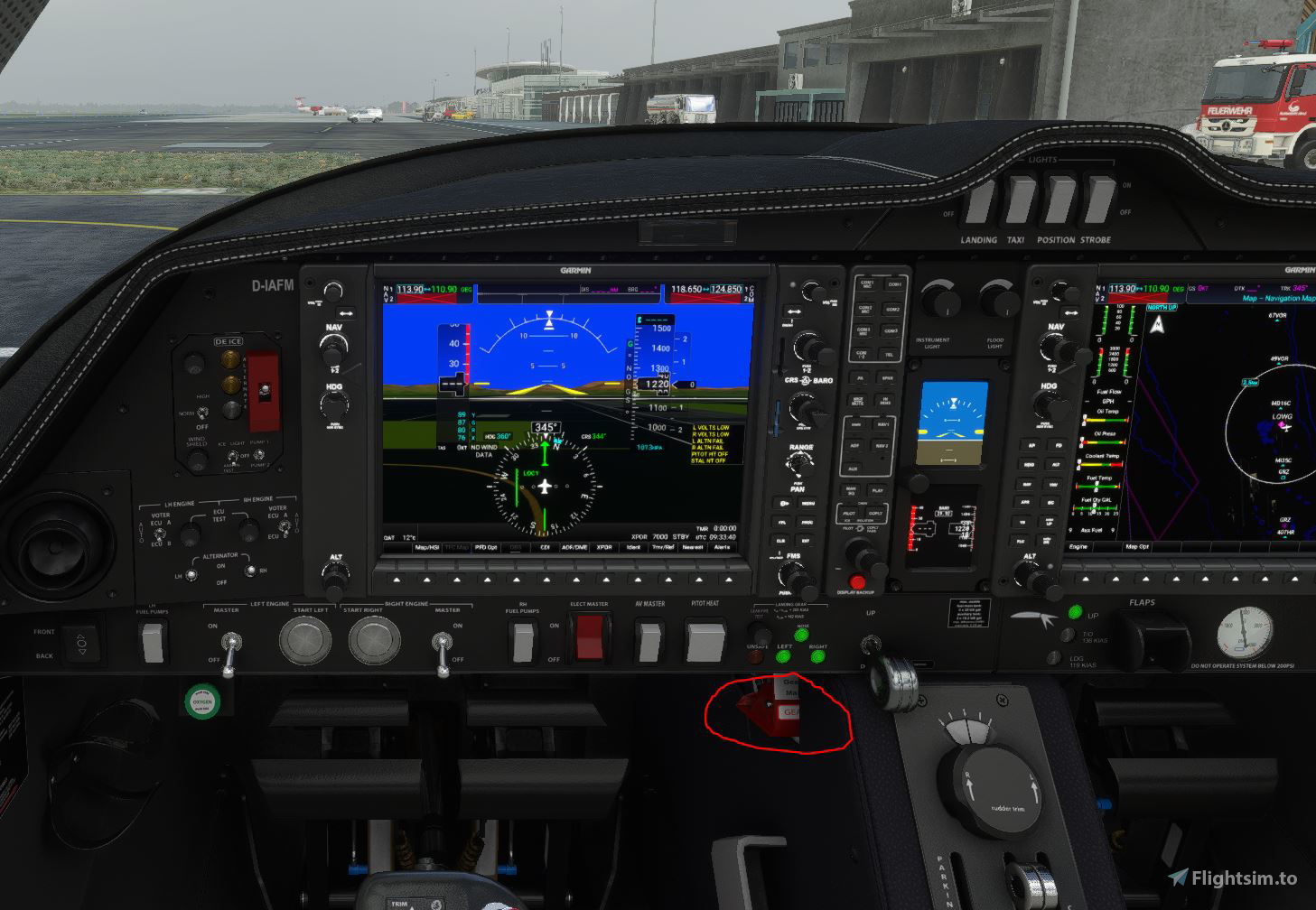

Would it be possible to add a clickspot for the emergency gear handle? I remember there once was one, though not at the right place. Please see screenshot in User Gallery (may take 48h until approved by admins).

Thank you very much!

Cheers

Martin

Perhaps, it would have been a better idea that the Diamond DA62X Improvement Project was listed as its own aircraft in the menu rather than overwriting the default aircraft. After all, this aircraft does have the X factor (DA62X).

Really love your Mod ... many thanks! Just found minor glitch, when flying with increased frame rate the engines start wildly going up and down 😊

Thanks MrTommy for your continued outstanding work to this exquisite mod.

As usual, thank you so much for modding this plane. With Navigraph and the pms50 750 makes it even better.

For those experiencing CTDs after SuX, please follow the instructions,

https://forums.flightsimulator.com/t/da62x-improvement-mod-v0-8-jul-08/294584/2514

Having issues with CTD now updated to SU10. First CTD was when starting flight then it would CTD while loading MSFS. Removed this mod and no CTD can use the default DA62 no problem (apart from after using this mod there is no way I want to fly the default DA62 :-p)

Amazing mod. One problem though: My game (SU10 Beta) crashes to the desktop when I moved DA62X_Statesaving.xml and DA62X_EngineDamage.xml to 'Disabled modules' folder.

My kindgdom for how to get his going with Steam install!!

Thanks in advance, it is my #1 go-to plane, so I'll be sure to support the author

MOD great but from the last two flights the speed drops by about 30

Amazing Mod, Thanks! And I found a bug, RST fuel and GAL REM doesn't work, Maybe something blocked it?

Will start by saying thank you for the amazing work, 5 stars.

I have recently encountered a strange behaviour.

  • I was running out of fuel in both tanks. Started the AUX pumps and that worked well pumping fuel into the main tanks. However I had fuel in only L AUX tank so ended up with an imbalance. Everything as expected so far.
  • Because of the imbalance, I set fuel switches to crossfeed to avoid a flame out, so that L tank could feed both engines. The R tank ran empty. Regardless, I had an engine flame out!
  • Instead of the R engine, it was the L engine that flamed out!

How's that?!

Hello, using your latest mod in the beta 10 I note that the rocker switches on the overhead that control the pilot and copilot overhead lights do not work. I read somewhere that Asobo had modified some of the mouse actions and perhaps that is why nothing I do with the mouse can move those switches. The copilot light is on all the time. I am in VR but it is the same on the flat screen. Otherwise I love the mod!

First of all thank you for this hard work, plane is amazing.

I'm hitting a weird problem lately. As soon as I turn the battery on, right ENG on fire and I can do nothing to change that. Fuel is cut off, I didn't even get to the point of starting it. Any clue ?

I was running v0.7 and all was fine. Switched to v0.8 and L engine only rises to 82%. Community folder is empty except for DA62MOD

Hi and thanks for your work!

Please can you make the control stick grabbable with VR controllers? This was added to all Asobo aircraft in Sim Update 7 (Nov 21) including the DA62, but it doesn't seem to have carried over to the modded version. I would love to fly your modded version using just the VR controllers. Thank you!

Great mod BUT.... the flight director causes the aircraft to bob up and down on auto pilot when in altitude hold mode. This causes the aircraft to bob at 10 feet up and down at every instance. I could imagine anyone riding in the aircraft vomiting very violently. Is this intended or a glitch?




Roadmap
Ces articles sont actuellement sur la liste et seront traités prochainement !
Backlog
Suggestion, bugs et idées pour l'avenir.

  • Version V0.9 September 24, 2022

    FADEC and powerplant:
    Power settings are now rounded
    Idle and ECU test behaviour improved
    Rain affects engine cooling
    Fuel flow is more accurate at lower power settings


    Systems.
    Now compatible with native WT G1000 Nxi
    Prop RPM rounded to the next 10
    Revisionary mode added
    Removed Pitot overheating.
    Removed ESP

    other:
    Updated key bindings
    nav2 statesaving fixed
    Engine damage and State-saving are now disabled by default, Instructions in PDF

  • Version V0.8 July 08, 2022

    Powerplant:
    Backend FADEC improvements with ECU runtime saving.
    - No more need to worry about your Propaxis
    Lowered oil temperature.
    Big thanks to Alex from SWS for adding the feather animation!! Enjoy.

    Flightmodel:
    New flaps
    CFD
    Modern propmodel
    Softened suspension
    other stuff

    Systems:
    Autopilot improvements
    stuff.

    Other:
    Added state saving, Progressive engine damage. Details in PDF
    removed emergency gear toggle.

    Docs:
    Added engine and aircraft documentation.
    Added Instructions to disable State saving and Engine damage in PDF

  • Version V0.7 March 12, 2022

    Powerplant:
    Added custom engine temperature simulation with waterpumps, oilpumps, thermostats and oil/water heat exchanger
    Increased fuel heating
    Oil pressure isnt so low when the engine is warm.
    Prop governor will overrev shortly and the FADEC will recover like the real plane
    Improved starter and starting behaviour

    Completely redone FADEC ECUs with circuits and new logic.
    - ECU channels will fail if the respective circuit fails
    - Engine will fail if a failed channel is selected
    - ECU channels will toggle depending on the day. Switching ECU will cause the stutter
    - ECU errors can be cleared by holding the ECU test button


    Sytems:
    "Check gear" callout is on a timer and is less annoying
    "Check gear" callout is also on the test button
    check gear/Fire alarm is quieter
    guess what I tuned again, the autopilot, YAAY
    New battery voltage curve


    Flightmodel:
    Lowered icing scalar

    Other:
    Alternate air and emergency gear commands in cockpit file
    Added new languages

  • Version v0.6.2 January 07, 2022

    Lowered volume of TAWS sounds
    Reduced effect of filter icing
    Filter ice will not build up when alternate air is active
    Added CAS messages for alt air and emergency gear extension
    Reverted to stock Asobo autopilot PIDs (because i give up)
    Updated PDF

  • Version v0.6.1 December 22, 2021

    Systems

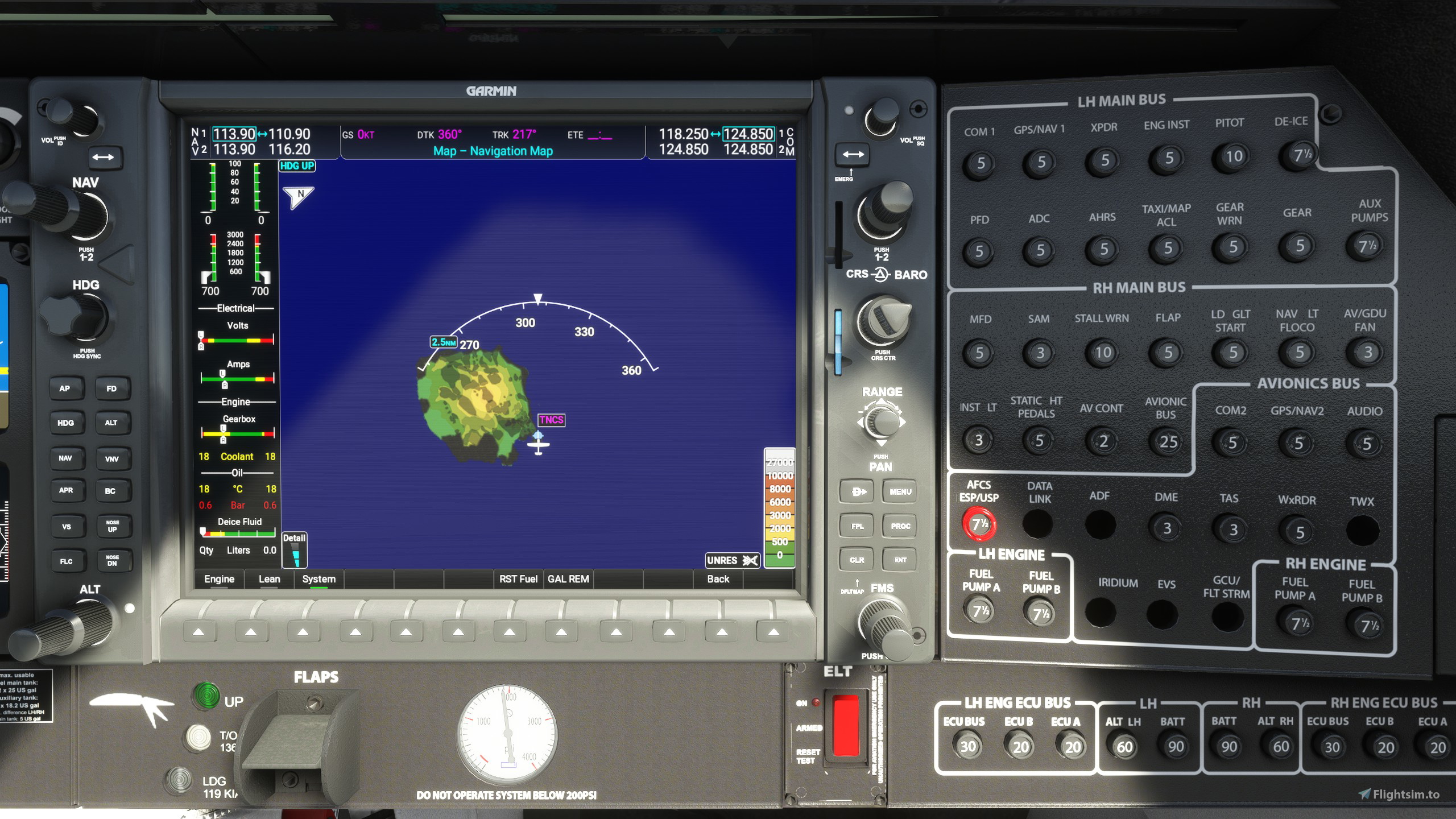

    Completely redone electrical systems:
    -M302 has its own backup battery (MD302x mod no longer required)
    -FADEC have their own batteries. Engines can run 45min-1hr if you were to lose main battery and alternators
    -Alternators react to Engine master switch correctly


    Added stall heat
    Added pitot and stall heat overheating on the ground.
    Added gear/fire/test warning alarm and "check gear" callout.
    Added gear warning when landing flaps are selected
    Added "taws system test ok" sound
    Reduced "vertical track" volume

    Gear can be extended even after full electrical failure. Some slipping my be required to fully lock the gear *(Right pilot rudder pedal)
    Added alternate air and filter icing. (*Left copilot pedal)
    * I am planning to add clickspots and animations to the correct levers. I just need to figure this out

    Fuel totaliser button moved to Oxygen gauge.
    Fixed aux tank empty not showing
    Fixed 500 callout not working
    ttl time in service is back
    Fixed Audio panel brightness not changing with G1000s

    Powerplant
    Tuned engine curves so that power will not increase as RPM is reduced at high altitudes

    Other
    Added check for other mods overwriting systems.cfg (CAS message)

  • Version v0.6 November 03, 2021

    Powerplant:
    New engine start and cold start behaviour
    Oil pressure needs a sec or two to build up
    Engines will now windmill start
    Engine load no longer show load during startup
    Ecu test behaviour softened
    Overheat slowed down

    Systems:
    Added Garmin ESP (beta). This can be toggled by holding the Gear/Fire test button for 3 seconds
    Yaw damper added. Slaved to AP (no indication on G1000)
    Fixed Autopilot for SU 6 (again and again)
    Fuel transfer float switch hysteresis removed
    Anti ice gauge fixed and added quantity and endurance line
    Fixed fuel flow discrepancy between engine and Fuel(lean) page
    Yoke now moves with autopilot (only roll lol)


    Flightmodel:
    Ailerons behave better in a stall
    Aileron more responsive at higher speeds
    Increased adverse yaw
    rudder and fuselage yaw and slidslip behaviour tuned
    Ground effect increased
    Suspension a little softer
    Reduced propwash on H-tail
    Increased tail incidence for easier rotation
    Reduced native roll stability
    set "modern FM only” tag in .cfg
    Icing performance degradation increased
    Added ice flutter. Above 80% icing the aircraft will flutter left and right slightly increasing with speed and icing


    Other:
    Removed throttle lever squeak
    New sound file: new flap and gear sounds
    Added "500" and "Vertical track" sounds (ty jarek)
    konami code...??
    Command file for home cockpit users included

Foire aux questions

Des questions ? Trouvez votre solution ici.

"FADEC INOP" CAS message, Engines turning off

FADEC Code hasn’t loaded in. The FADEC is based on Simconnect and other simconnect mods can interfere with the FADEC.

Additionally a livery with a seperate Panel.cfg (Xbox 01 livery for example) can stop the FADEC from being loaded in.



Check your other mods (Kenetic assist, replay mods, multiplayer mods, Liveries, etc). Try the default livery

"Incompatible Livery" CAS message and alot of other warnings.

The ModelBehaviorDefs folder isn’t being loaded in. Another mod (possibly livery) is interfering with the DA62X.

Check your community folder for other mods that might interfere with the DA62.

Try the default livery

Controlling the DA62X seems sluggish, slow and heavy.

We all know how sensitive the planes are in this game. Check if you have sensitivity curve setup in your control settings. The DA62X doesn’t need a curve and it is recommended that you fly with a linear curve.

Unable to takeoff and or the plane rolls and flips uncontrollably

Only the modern flightmodel is supported.

Check that you are not using the legacy flightmodel.

Cockpit is invisible

Uwajimayas Lighting mod and MixMugs Pilot/Copilot mods are already integrated into the DA62X and are not needed.



Remove those mods

MFD and PFD are swapped

Check if you are using any liveries or cockpit repaints or Uwajimayas lighting mod.

"Incompatible Systems.cfg"/ Can't start the engines, screens flash when pressing the starter

It could be that another mod or livery with it's own "systems.cfg" is interfering with the DA62X.

Check your community folder for other mods that might interfere with the DA62X.

Remove Uwa's lighting mod if installed.

Try the default livery

Dons

Ces utilisateurs ont fait une donation à mrtommymxr Pour le soutenir pour ses add-ons que tous peuvent bénéficier.

Dépendances

These add-ons may be required or recommended to use.


C'est plutôt vide par ici.
