Description
FBW A320 AAO Scripts & StreamDeck XL & PLUS profile
I don't use this addon any longer. So don't expect further development.
ATTENTION!
PLEASE READ CAREFULLY!
- When you import SD profiles, make sure to delete the old ones, otherwise you'll get profile copies.
- Make sure to always have the latest AAO and AAO StreamDeck plugin versions!
- I just create the SD profiles! For any connection issues, SD plugin not working, Buttons show "?" or nothing, no reaction of the SD etc., please contact the developer of AAO! And please read the AAO Manual!
- It is - as the title says - just for the StreamDeck XL (!). Please do not ask for a 15 button conversion. This will not happen as this will more than double the amount of development and support for me as I do not have a 15 button SD. Sorry.
- Please ask if you want to use parts of my SD profiles, icons or AAO scripts or whatever! And please ask everytime you start a new project! You have to credit and link me in your description!
- If you use my work, you are then not allowed to beg for own donations!
Installation:
Import the needed A320 Scripts "AxisAndOhsScripts_FBWA320.xml" into AAO (Scripting --> import Scripts)
Doubleclick (install) the SD Profile FBW A320.streamDeckProfile
For StreamDeck PLUS doubleclik on PLUS FBW A320N.streamDeckProfile
Donations are welcome!!! it is a lot, really a lot of work, and some donations make future projects easier ;) thx!
If you want to donate directly as friend without a PayPal fee, then use this adress, please: www.paypal.com/paypalme/GuenterSteiner
Commentaires(328)
Connectez-vous pour participer à la discussion
Se connecter5 months ago
after a long break, I started using MSFS 2020 again with the FBW A32NX and noticed that some Stream Deck functions were no longer working correctly.
To fix this, I decided to tweak a few things, and I managed to get most of it working again.
Tested versions:
- Microsoft Flight Simulator 2020 (latest version)
- FBW A32NX DEV version 4569ac8
- AxisAndOhs version 4.56 b19
- Stream Deck software version 7.1.1 (22340)
In this package, I modified some scripts and several calls between the Stream Deck and AxisAndOhs.
Affected Stream Deck pages:
-On Ground – Page 2

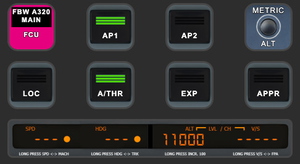

-FCU – Page 3

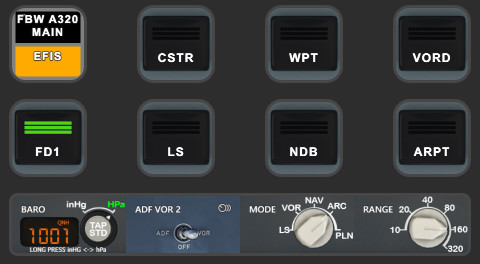

-EFIS – Page 4

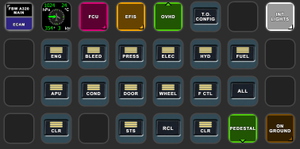

-ECAM – Page 5
-OVHD – Page 6
The compressed file contains:
-An updated Stream Deck profile
-Updated AxisAndOhs scripts
-A sound effects folder
If you want to use the sound effects, copy the folder, without rename it, to the root of drive C:
(for example: C:\A320_Sounds_Effects).
I added sound effects triggered by AxisAndOhs because some AAO events change the simulator state without a physical button press, which would otherwise result in no audio feedback.
If you don’t want any sound effects, simply remove, rename, or move the A320_Sounds_Effects folder.
I have asked the original creator of this package for permission to publish a fork. While waiting for their response, I’m sharing my work with the community.
DOWNLOAD HERE:
https://drive.google.com/drive/folders/17KSKZqlveEDkcdh4m1j7Y2EBFi4vgVvW?usp=sharing
I hope you find it useful.
Thanks againt to Guenseli for the great work!
Let’s keep this thread updated.
5 months ago
For those whom had same issue than me : When importing SD profile, software ask if we are sure and after clicked to "Yes", nothing happens. Issue is caused by the version of SD software. My Stream Deck software was on version 7.0.3 (22071) and I wasn't able to update on same version than yours because it gave me an error when tried to update direct from software. So I downloaded last version 7.2.0 (22454) from their website and now import profile is running fine.
About "T.O. CONFIG" button, as I use FBW stable version, the button was correctly pushed in the sim with your script but nothing happens. So I changed to this code and now it works :
1·(>H:A32NX_ECP_TO_CONF_TEST_PRESSED)
(WAIT:250)
0·(>H:A32NX_ECP_TO_CONF_TEST_RELEASED)
"BRK FAN" button is working well but the status on SD doesn't come back when it's ON or HOT. Here is modified script (again for last stable FBW version) :
(L:A32NX_BRAKES_HOT,·Number)·1·==·if{·1·}·els{·0·}
(>L:FBWA320BRKFANSEQ1)
(L:A32NX_BRAKE_FAN_BTN_PRESSED,·Number)·1·==·if{·1·}·els{·0·}
(>L:FBWA320BRKFANSEQ2)
5 months ago
Thanks also for sharing the Stream Deck version issue and solution, that will definitely help other users who might run into the same problem.
Just to clarify: all my tests and development are currently done using the FBW A32NX DEV version, not the Stable one.
Regarding the T.O. CONFIG and BRK FAN buttons: thank you for the suggested changes and for pointing out the differences with the FBW stable version. I’ve now updated the scripts accordingly using your suggestions.
I’ve re-uploaded the compressed file on Google Drive, and it now includes:
- The updated T.O. CONFIG logic;
- The updated CLR left and CLR right buttons logic;
- The revised BRK FAN script with correct status feedback on the Stream Deck;
Thanks again for your contribution — it’s always great when improvements come from real-world usage. Happy flying! ✈️
11 months ago
5 months ago
If you'd like, I can send you both so you can tell me if they work.
(tested with dev version "4569ac8" of FBW A32NX)
about 1 year ago
9 months ago
1 (L:A32NX_OVHD_ELEC_EXT_PWR_PB_IS_ON, Bool) - (>L:A32NX_OVHD_ELEC_EXT_PWR_PB_IS_ON, Bool)
Paste it into the AAO scripts editor and click 'Test'. It should toggle the Ext Pwr button.
If it works correctly you can create the script and the Stream Deck action.
over 1 year ago
9 months ago
over 1 year ago
over 1 year ago
about 2 years ago
about 2 years ago
about 2 years ago
over 1 year ago
Push and Pull do not work for heading or speed, they do work for Altitude.
Thank you
FBW A320 AAO Scripts & StreamDeck XL & PLUS profile and MCP Combo template
